VW T5/6 Under Seat Battery Mount Tray

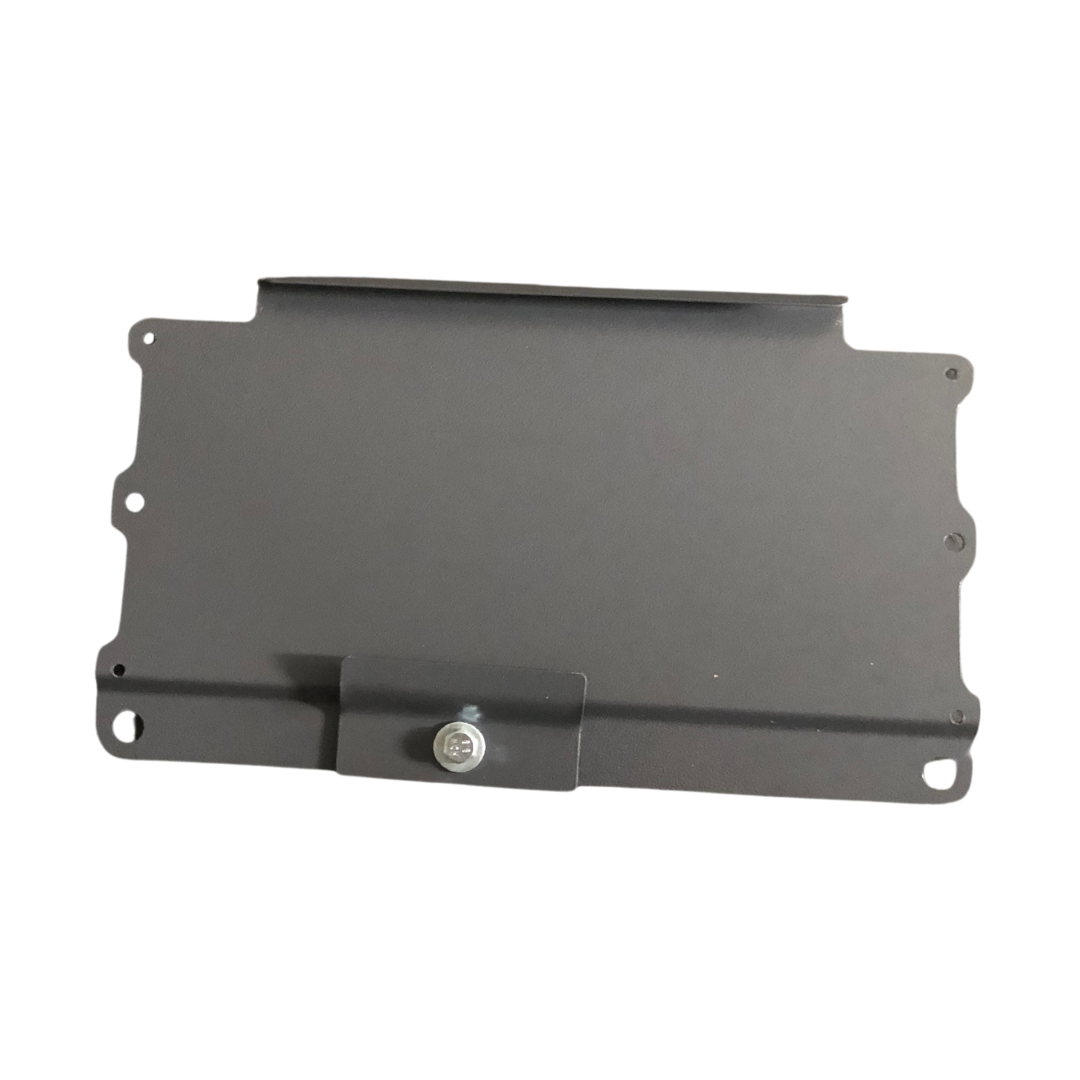

This battery tray for the VW T5 and VW T6 is designed to fit under the single seats in the van. The kit includes the tray, holding plate and a bolt

Please be aware modification to the battery tray may be required if being fitted under the drivers seat, just a small cut out.

Manufactures fitting advice
1. Remove seat from seat base.
2.Undo rear bolts of passenger seat base.
3.Fasten the battery tray down over the rear two seat base bolts with the original bolts.
4.Drill two holes where the two small holes in the battery tray are.
5.You will need 2 screws to put into the holes you have just drilled.
6.Place the battery on the tray and fix it into position by using the clamp.
7.Refit the seat back to the seat base.

Please Note: Colour of the tray may vary (light grey. dark grey, black etc.)
